Partscaster: T style with P-Rails

Super pleased with this guitar that I put together from custom parts a short while ago:

One of my life-long passions has been creating music. For the past decade and a half, the form that musical expression has taken is in playing the guitar. I've played most Sundays in church for the past several years and over time, I've been exploring different variations on amps, effects, and guitars to try to find the perfect balance of tones, to fit the mood of the moment in music.

Since many of the songs we play are by different groups, who each use different instruments, I've been looking for a way to have a wide variety of different sounds on tap. Ideally, this wouldn't require carting half a dozen different guitars and amps on stage each weekend. This started me looking for different styles of guitar pickups that are versatile and mimic a number of different popular configurations. When I learned about Seymour Duncan's P-Rails pickups, they sounded like a perfect solution for the kind of versatility I sought.

These pickups include a P90 pickup as well as a "rail" style coil, both in a tidy package that fits a space for most humbucker pickups. If wired to switch between the P90, the rail pickup, or both, this one pickup could do triple-duty; matching three common pickup styles. Seymour Duncan also provides a great way to handle the switching between these different modes in their Triple Shot mounting rings. These are essentially pickup rings that also include two small switches, and by flipping through different combinations, the pickups can be run as: P90-only, rail-only, both in parallel, and both in series. My mind was swimming with possibilities.

With the pickups sorted out, now the question was, what kind of platform should these pickups be put into? I've recently been enjoying Telecaster guitars, and the traditional shape and style of an early 1950s Telecaster has a timeless appeal that seemed like an inconspicious way to bring a surprising amount of versatility on stage. Rather than buy a Tele to rip it apart, I thought I could start fresh, and it seemed like building my own Tele-style guitar from parts might not be too far a stretch for me, as little woodworking experience as I had had at this point. The place many people turn for custom guitar parts Warmoth, which has a great reputation for high quality custom work. I choose a Telecaster shape routed for Humbucker pickups, made of Alder (same as the American Standard Telecaster I also have).

For the neck of the guitar, I had a couple of unique things in mind. First was the thickness of the neck. I have relatively long fingers, and the thin necks on some electric guitars tend to cause discomfort on long playing sessions. I've found thicker necks to be much more comfortable, so I decided to pick a Boatneck profile when ordering from Warmoth. The second non-traditional detail that I had in mind was to spring for stainless steel frets. I dislike the idea of the frets wearing down over the years as I play, and I wanted to build something that I'd enjoy playing for years to come. The durability of stainless frets might mean that I'll never need to refret this neck, which sounds like a win to me.

The last question was the finish. Traditionally, the early Fender guitars were finished with nitrocellulose laquer, and even today many high end instruments use this as the weatherproof coating. While in some ways inferior to modern materials, there are two aspects to this finish that I found attractive: ease of applying the finish and repairing mistakes (thanks to its ability to "burn in" to previous layers) and the way that it hardens and wears over time. The worn-in look is quite popular these days, especially on telecasters, and while I have no plans to artificially relic this guitar, I'd love to watch how the finish ages over the years. I decided to apply the finish myself, so I bought a few rattle cans of nitrocellulose laquer in butterscotch transparent and clear. I applied a few coats of clear as a sealer, then around 4 coats of butterscotch, followed by around 10 coats of clear on top. The neck of the guitar I sprayed with clear only. After waiting a couple of weeks for it to dry, I wet-sanded with a series of increasingly high grits of sandpaper. Starting from around 180 grit, I worked up slowly to 4000. It was pretty nerve-wracking at the start, seeing the shiny, but a bit orange-peel-y, finish turn dull and flat. Not until over 2000 grit did it start to shine again.

The painting all finished, it was time to put it together! For the wiring, I thought it would be cool to try a 4-way switch with positions for neck pickup only, bridge pickup only, both in parallel, and both in series (to match the multiple ways to wire each pickup). This would create a dizzying array of pickup combinations - 40, to be precise, which is probably too many, but hey, if you've got it why not! The last detail of the wiring which is somewhat unusual is the "treble bleed circuit" which consists of a capacitor + resistor on the volume potentiometer. It allows some of the high frequencies to continue to "bleed" through the volume control as it is turned down. The effect is that as the volume is turned down, the sound gets "thinner" and more bright, rather than darker and more muddy which would naturally happen on a volume pot without this added detail. I've loved this feature of my American Standard Telecaster, so I decided to duplicate it here.

Here's the schematic for the wiring:

Over the course of a few months, I worked on this over the weekends and vacations and finally wrapped it all up around Christmas time. Without further ado, the pictures:

Here are the specs at a glance:

• Body
  • Shape: Telecaster (traditional)
  • Wood: Alder
  • Finish: Nitrocellulose Laquer (Butterscotch and Clear)
  • Pickguard, solid black
• Neck
  • Shape: Telecaster with Vintage/Modern truss rod access
  • Profile: Warmoth Boatneck
  • Radius: Warmoth compound radius (10"-16")
  • Frets: Stainless steel size 6150 (medium jumbo)
  • Finish: Nitrocellulose Laquer (Clear)
  • Tuners: Sperzel locking tuners
• Electronics
  • Pickups: P-Rails for Neck and Bridge pickups, wired to Triple Shot mounting rings
  • Oak Grigsby 4 way switch
  • Treble bleed circuit on volume pot
  • CTS pots

Cryptopals

I've had a longstanding interest in cryptography and recently dove into a set of exercises that teach basic concepts of cryptanalysis. I highly recommend it if you are looking to learn more about cryptography: Cryptopals.

Early Telecasters A Visual History

Along with software development, my other passion is for making music. There have been a few instruments I've specialized in over the years, but my far and away favorite at the moment is electric guitar, specifically a Fender Telecaster. For the past couple of years, I've been playing a 2015 American Standard. Here are a few pictures:

One of the things that amazes me about this instrument is the classic design which has undergone very few changes since this instrument was first introduced in 1950. As one of the very first mass produced electric guitars, the Telecaster continues to influence modern music as well as the design of electric guitars. Most electric guitar makers sell a "T" style guitar in their lineup.

Lets look back at a brief visual history of the first decade of the Telecaster family of guitars.

1950

Beginning in 1950, the Fender Electric Instrument Manufacturing Company began selling a couple of styles of electric guitar. First, the single pickup Esquire, followed shortly by the two pickup Broadcaster.

Esquire

One of the surprising details to me about this guitar, is the presence of a three-way selector switch. In most electric guitars, the selector switch activates different combinations of the pickups in the guitar. Most single pickup guitars omit a selector switch (see for example, the Gibson Les Paul Junior). So what is a selector switch doing on a single pickup guitar?

In the wiring for an Esquire, the middle position matches what most would consider a normal setup for a single pickup guitar with two knobs. In this position, the volume and tone knobs control the output from the pickups. When the switch is up towards the neck of the guitar, an additional capacitor is in the output chain in place of the tone knob. This cuts out many of the high frequencies in the output and produces a somewhat muddy sound more reminiscent of a bass guitar. This video has a great demonstration of the Esquire tones. A demonstration of the tones begins around 3:27 in the video. This circuit position in particular is not typically found on a modern electric guitar, pretty unique! The final position, down towards the bridge is a circuit that bypasses the tone control entirely and is the least filtered of the circuit options. Only the volume control is changing the output, so you get the widest possible set of frequencies. There are a few guitars out there today that dispense with a tone control. One example is the Jim Root Telecaster, however it is a very different beast than the 1950 Fender Esquire.

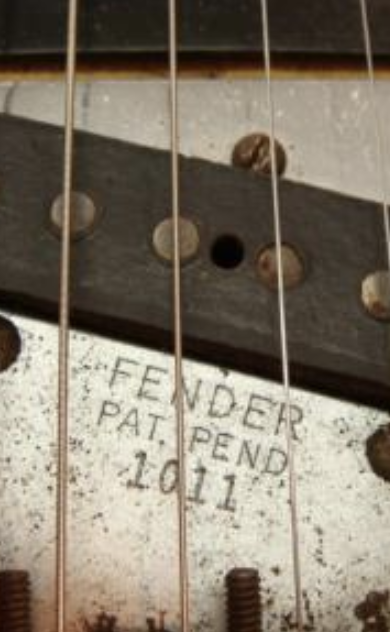

And now for the look:

While the single pickup guitar was the first to be widely available, from the beginning, Fender had planned to produce a two pickup guitar. In fact, these early Esquire guitars reportedly had a cutout for the neck pickup ready to go but hidden away under the pickguard. And that brings us to the next guitar available in 1950: the Broadcaster.

Broadcaster

With it's two pickups mounted on a solid ash body, this is very recognizably the first example of what is today the Telecaster. Originally named the Broadcaster, it would soon have to be renamed due to a trademark dispute. Few guitars carry the Broadcaster name.

While the Broadcaster has the recognizable two pickup configuration, two knobs, and a three way selector, the wiring is very different from what would later become what is now considered normal Telecaster wiring. In these early models, the three selector switch toggled between the following settings. (Note, more details on this original Broadcaster wiring can be found here.) Here's what the different positions in a Broadcaster switch do:

The position with the switch down towards the bridge includes the output of the bridge pickup, with no tone adjustment similar to this setting in the Esquire. However, rather than ignore the tone know, in this position, the "tone" knob is a "blend" control which adds in the output from the neck pickup. Turned one way, the neck pickup is all the way in, the other way it's all the way out. Next, the middle position includes the full output of only the neck pickup (no tone modification). The final position, up towards the neck, includes only the neck pickup with a capacitor that filters out the high frequencies. I found it fascinating that in the original Broadcaster wiring, there's no variable tone control, just pickup selection with one option being a fixed tone cut. The closest-to-bridge switch position is most similar to the middle position in modern Telecasters. Although, in a modern telecaster, there's a constant balance of output between the picksups when both are active.

A good example of the tones that come from this wiring can be found in this video. Although this isn't an original Broadcaster, it demonstrates the different behaviors of this pickup switch. Here's another example. For a video showcasing an actual 1950 Broadcaster, check out this video from Norman's Rare Guitars.

1951

Over the course of 1951, the Broadcaster would be renamed to the Telecaster. Aside from the name change, the guitars' design was essentially unchanged.

Broadcaster

In early 1951, Fender continued making Broadcaster guitars. However, the Gretsch company notified Fender that the Broadcaster name on their guitar conflicted with their trademarked Gretsch Broadkaster drum set. It doesn't sound like the two companies went to court over the name. I wonder how it would have gone had Fender decided not to change the name. Gretsch also produced electric guitars at the time, and continues to make and sell them today. In 1951, none of the Gretsch guitars were named Broadcaster, though they do today sell a Broadkaster Guitar.

Nocaster

Following the notice from Gretsch guitars, Fender began producing their formerly-known-as-Broadcaster guitars with no model name on the decal. The headstock of the guitar was labelled only with the name Fender, hence guitars produced in their period are dubbed "Nocaster" guitars. Aside from the name change on the headstock, the Nocaster is visually similar to the Broadcaster that came before it. The body is painted a translucent Butterscotch Blond with a single-ply black pickguard:

These Nocaster guitars are quite rare as they were produced for only a partial year. By year's end, these guitars bore their new and final name.

Telecaster

In late 1951, the guitar received the name that it is known by today: the Telecaster. Other than the new name on the headstock, these guitars were identical to those produced earlier in the year.

While these guitars now bear their modern name, the wiring of the pickups is significantly different than what they carry today. Modern style pickup wiring was introduced in the late 1952.

Esquire

Fender continued to produce Esquires as well in 1951. In addition to the "Butterscotch Blond" color, the Esquire was also available in a "Blond" color which was a translucent white. The finish on these guitars tend to yellow significantly as they age, so most old guitars have a noticable yellow tint to them. Here are a few pictures:


Few other instruments have been in continuous manufacture as the humble Telecaster and it still plays a major role in modern music. Here's to the next 70 years.
